Yaesu

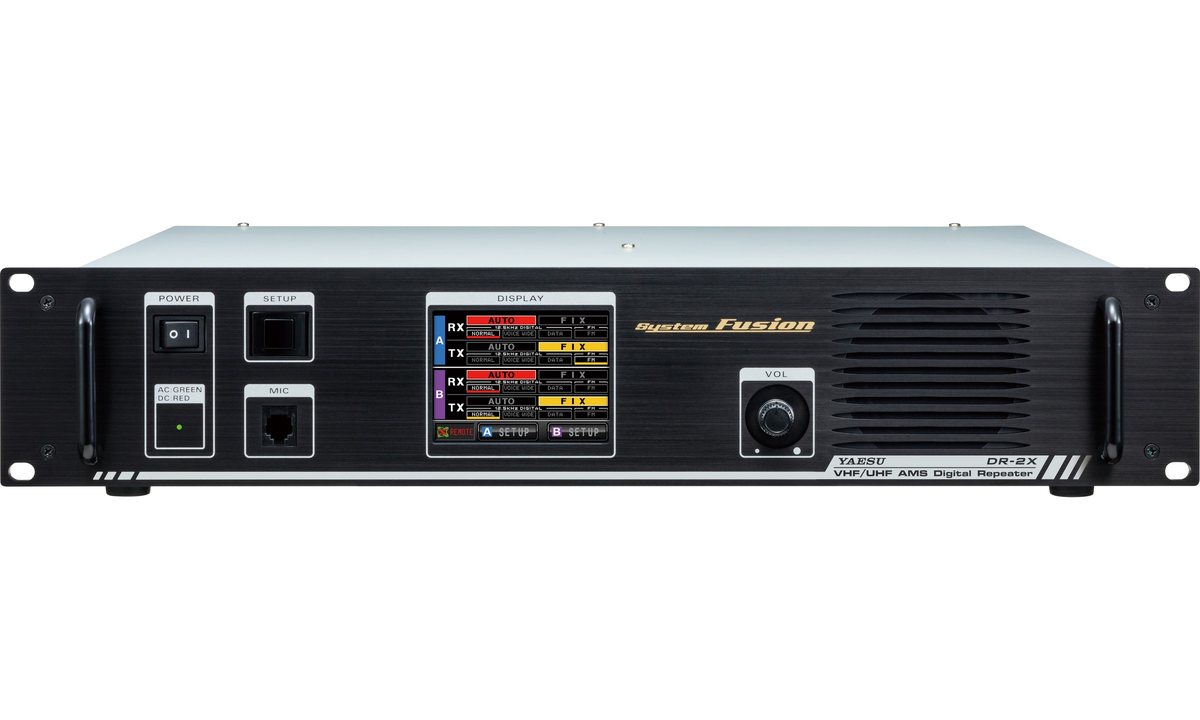

DR-2X C4FM/FM Dual Band Digital Repeater

$1,850.00Includes GST · $1,681.82 ex GST

In stock · ships from Melbourne

  • Tracked shippingAustralia-wide and to New Zealand.
  • Authorised Yaesu dealerGenuine stock with Australian warranty.
  • Secure paymentCard payments processed by Stripe.
  • Trade in your radioGet an offer on your old gear.

Overview

144/430 MHz dual band, dual receive heavy-duty C4FM/FM digital repeater.

The DR-2X runs conventional FM and 12.5 kHz C4FM digital, so it can replace an existing analogue repeater while adding System Fusion digital. Automatic Mode Select (AMS) detects whether an incoming signal is C4FM or FM and re-transmits it in the preset mode, so analogue and digital users can talk to each other.

Key features

  • Dual receive / dual transmit: up to two frequency pairs per repeater, for example a second uplink or a control/emergency channel
  • C4FM digital voice with excellent bit error rate performance in 12.5 kHz bandwidth
  • Automatic Mode Select (AMS) between C4FM and FM
  • Repeater linking over the internet or LAN with the optional IMRS / LAN unit
  • Group Monitor (DG-ID) and News Station for stored voice and text messages
  • RF output 50 W, 20 W or 5 W
  • 3.5-inch colour touch panel, front microphone socket and speaker
  • DSQ, CTCSS and DCS, ID announcements, time-out timer, remote control I/O port, firmware updates
  • Standard 19-inch rack size (2U): controller, receiver and transmitter in one unit

Specifications

  • Frequency range: 144–146 MHz and 430–450 MHz
  • Emission: F1D, F2D, F3E, F7W (C4FM 4FSK)
  • Frequency stability: ±2.5 ppm (TCXO)
  • RF output: 50 / 20 / 5 W
  • Receiver sensitivity: 0.3 µV digital (BER 1%), 0.2 µV FM (12 dB SINAD)
  • Antenna impedance: 50 Ω
  • Operating temperature: −20 °C to +60 °C
  • Dimensions: 19" W × 3.5" H × 15" D (rack mount)
  • Weight: approx. 10 kg

Genuine Yaesu with Australian warranty from VK Radio, authorised Yaesu dealer and service centre.

SKU DR-2X
