Yaesu

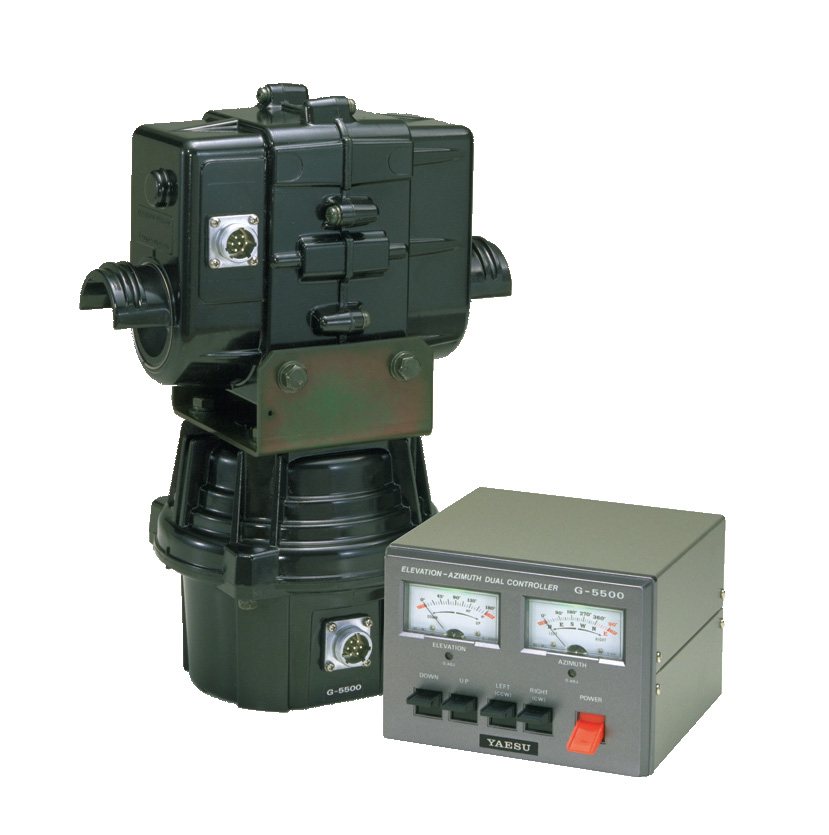

G-5500DC X/Y Rotor
In stock · ships from Melbourne
Currently out of stock. Notify me when in stock
- Tracked shippingAustralia-wide and to New Zealand.
- Authorised Yaesu dealerGenuine stock with Australian warranty.
- Secure paymentCard payments processed by Stripe.
- Trade in your radioGet an offer on your old gear.
Overview
Light-Medium Duty - Azimuth+Elevation, 11 Sq. Ft. (Rotor Diameter 7 12in, Rotor Height 12 1/2in, Mast Diameter 1 1/2 - 2 1/2in, Boom Diameter 1 1/4 - 1 5/8in)
The Yaesu G-5500DC is ideal for space communication antennas as well as many other amateur applications. The G-5500DC features an interface jack for computer control and a full Azimuth-Elevation rotation system with a rotation range of 180 degrees from the Elevation Rotator and a turning range of 450 degrees from the Azimuth Rotator.
Specifications:
-Wind Load: 1m
-K-Factor: 60
-Stationary Torque: AZ:4,000kg/cm EL:4000kg/cm
-Rotation Torque: AZ: 600kg/cm EL:1,400kg/cm
-Max. Vert. Load: 30kg
-Max. Vert. Intermittent Load: 100kg
-Backlash: AZ:1° EL:1°
-Mast Size: AZ:38 - 62 Ø EL:AZ:38 - 62 Ø
-360° Rotation Time: AZ:70sec/50Hz 58sec/60Hz
-180° Elevation Time: EL:80sec/50Hz 67sec/60Hz
-Boom Diameter: EL 32 - 43Ø
-Rotator Diameter x Height: 186Ø x 254(W) X 350 (H)
-Weight: 7.8kg
-Cable Requirement: 2 x 6
